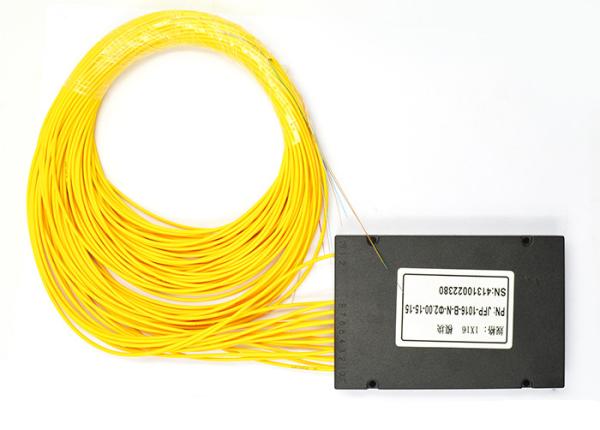

1x16 Fiber Optic Splitter ABS Box Customized Fiber Length 1 Year Warranty

    Buy cheap 1x16 Fiber Optic Splitter ABS Box Customized Fiber Length 1 Year Warranty from wholesalers

    Buy cheap 1x16 Fiber Optic Splitter ABS Box Customized Fiber Length 1 Year Warranty from wholesalers
    • Buy cheap 1x16 Fiber Optic Splitter ABS Box Customized Fiber Length 1 Year Warranty from wholesalers
    • Buy cheap 1x16 Fiber Optic Splitter ABS Box Customized Fiber Length 1 Year Warranty from wholesalers

    1x16 Fiber Optic Splitter ABS Box Customized Fiber Length 1 Year Warranty

    Ask Lasest Price
    Brand Name : Haiyu Optical
    Model Number : HYG-SPL-SC-1*16
    Certification : CE, ISO9001, Rohs
    Price : USD10~100/pc, Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram, L/C
    Supply Ability : 1000pcs per day
    Delivery Time : 2-3 working days
    • Product Details
    • Company Profile

    1x16 Fiber Optic Splitter ABS Box Customized Fiber Length 1 Year Warranty

    1x16 Fiber Optic PLC Splitter SC LC FC ST Connector Avaliable


    Product Description:


    PLC splitter is an optical power distribution component based on silica optical waveguide technology. It is widely used in PON networks to realize optical signal power management.


    Specification:


    Type1x42x41x82x81x162x161x322x321x64
    Fiber Type9/125um SMF28e or customer specified
    Operation Wavelength1260~1650nm
    Insertion Loss (dB)(Typ)<7.1<7.3<10.0<10.3<13.5<14.0<16.8<17.3<20.0
    Insertion Loss (dB)(Max)1<7.5<7.7<10.5<10.8<14.0<14.7<17.5<18<20.3
    Uniformity (dB)(Max)<0.7<1.0<1.0<1.2<1.5<2.0<2.0<2.5<2.5
    Polarization Dependent Loss (dB)(Max)<0.3<0.40<0.30<0.40<0.3
    Directivity (dB)(Min)≥55
    Return Loss (dB)(Min)≥55

    Operating Temperature

    ( oC)

    		-40 to +85

    Storage Temperature

    ( oC)

    		-40 to +85

    Insertion loss is excluding connector loss at typically 0.2dB.


    Product Types:

    • PLC Splitter Modules
    • Blockless PLC Splitters
    • PLC Splitter Boxes

    Features:


    • Compact Size
    • Low insertion and low PDL
    • Excellent environmental stability
    • Compliant with Telcordia GR-1209/1221-Core
    • Good uniformity
    • Wide operating temperature range
    • High reliability and stability
    • SC LC FC ST Connector Avaliable

    Applications:

    ​

    • FTTx (FTTP, FTTH, FTTN, FTTC)
    • Passive Optical Networks (PON)
    • Local Area Networks (LAN)
    • CATV system
    • Test equipment
