24F Fiber Optic Jumper Aqua Color , Multimode Fiber Patch Cord 3mm Diameter

Ask Lasest Price
Brand Name :	Haiyuoptical
Model Number :	HYG-MPO/MTP-OM3-24F-5M
Certification :	Rohs,CE, ISO
Price :	Negotiable
Payment Terms :	T/T, Western Union, MoneyGram
Supply Ability :	1000pcs per day
Delivery Time :	2-3 working days

Add to Cart

Product Details
Company Profile

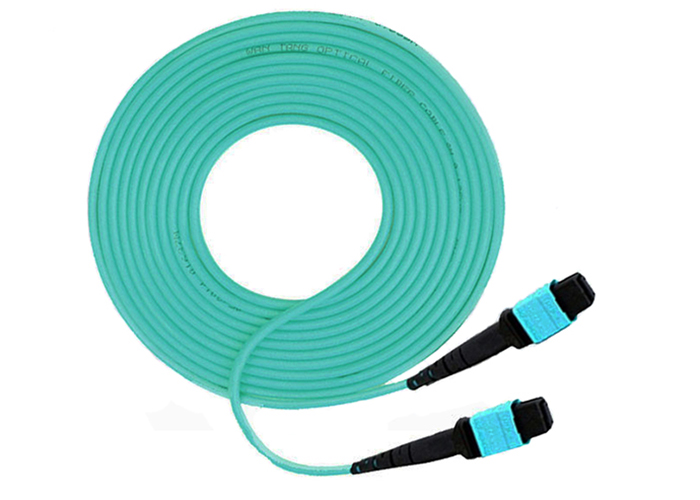

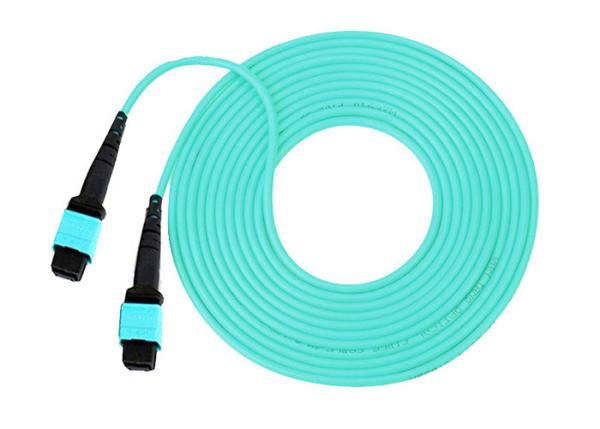

24F Fiber Optic Jumper Aqua Color , Multimode Fiber Patch Cord 3mm Diameter

24F Optical fiber jumper OM3 multimode fibre MPO Fiber Optic Patch Cord

Specification:

PERFORMANCE INDEX
MPO CONNECTOR
Fiber type	SM		MM
	UPC	APC	PC
Insertion Loss (IL)Low(dB)	≤0.35		≤0.35
Insertion Loss (IL)Max(dB)	≤0.75		≤0.6
Return Loss (RL)(dB)	≥50	≥60	≥20
Endurance (500 remates)(dB)	IL<0.3		IL<0.2
Operating Temperature(℃)	-10 ~ +60
Storage Temperature(℃)	-40 ~ +85
Maximum tensile strengthe(N)	100

Transmission
Characteristics	Unit	SM	Std. 50um	62.5um	OM2	OM3
Max. Attenuation	dB/km (nm)	0.4/0.3 (1310/1550)	2.8 (850)	3.0 (850)	2.8 (850)	2.8 (850)
Min. Bandwidth	MHz•km (nm)	-	500/500 (850/1300)	200/200 (850/1300	750 (850)	2000 (850)
Dispersion Coefficient	ps/ nm2•km	<3.0 (1310nm)	-	-	-	-

Description:

MPO/ multi-fiber cabling system is ideally suited for a high density environment that demands space saving and innovative cable management solutions. MPO fan-out supports various connections from multi-fiber to single-fiber out. We also offer various other MPO products such as MPO cassettes, modules and enclosures. These cassettes provide secure transition between MPO and LC or SC connections.

Features:

1.High repeatability & credibility
2.Competitive price
3.Fast delivery time
4.Low insertion loss

Applications:

1,Optical fiber communications systems;
2,Optical fiber access network;
3,Optical fiber CATV.
4,Optical fiber test equipments;
5,Optical fiber data communications;
6,LAN
