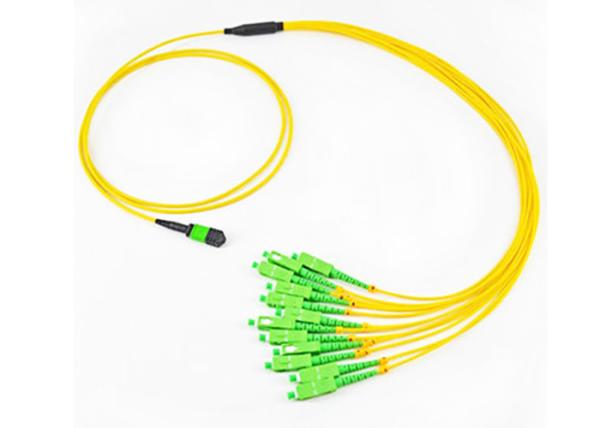

    SM Breakout MPO Fiber Optic Patch Cord APC Interface Customized Length

    Ask Lasest Price
    Brand Name : Haiyu Optical
    Model Number : HYG-MTP-SC-SM-12F-1M
    Certification : CE/ROHS/ISO9001
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 1000pcs per day
    Delivery Time : 2-3 working days
    • Product Details
    • Company Profile

    SM Breakout MPO Fiber Optic Patch Cord APC Interface Customized Length

    MTP to SC 12 Fibre SM Breakout Optical Fiber Patch Cable APC interface


    Specification:

    ParametersMin.TypicalMax.Unit.
    Operating WavelengthSingle Mode13101620nm
    Multi-mode8501310
    MPO Insertion LossSingle Mode0.6dB
    Single Mode Low Loss0.30.35
    Multi-mode0.75

    Single Fiber Insertion Loss
    (Fan-out side)

    		Single Mode0.2dB
    Single Mode Low Loss0.3
    Multi-mode0.3
    Return LossSingle Mode50dB
    Single Mode Low Loss60
    Multi-mode30
    Operating Temperature- 20+ 70°C
    Fiber Type

    SM ITU-T G652 and IEC 60793-2-50 B1.3
    SM ITU-T G657A2/B2 and IEC 60793-2-50 B1.6A
    OM3 ISO/IEC 11801 and IEC 60793-2-10 Ala.2

    Cable Jacket TypeRibbon / Fan-outLSZH
    Cable Jacket ColorYellowG652 and G657 Single mode fiber
    OrangeOM2 Multi-mode fiber
    AquaOM3 fiber
    Flammability RatingIEC-60332-1, IEC-61034, IEC-60754-1 and 2

    Note: 1) IL is tested in room temperature. 2)Total IL is MPO IL + all Fan-out side IL. 3)Tested at 1310nm and 1550nm for single-mode jumper, 850nm and 1310nm for multi-mode jumper.


    Description:

    MPO/ multi-fiber cabling system is ideally suited for a high density environment that demands space saving and innovative cable management solutions. MPO fan-out supports various connections from multi-fiber to single-fiber out. We also offer various other MPO products such as MPO cassettes, modules and enclosures. These cassettes provide secure transition between MPO and LC or SC connections.

    Features:

    1. Improves and simplifies fiber routing
    2. Decreases fiber management space
    3. Low insertion loss and reflectance
    4. High Density
    5. Snap-In cassette panel for easy installation, removal and expansion


    Applications:

    ​1,Optical fiber communications systems;
    2,Optical fiber access network;
    3,Optical fiber CATV.
    4,Optical fiber test equipments;
    5,Optical fiber data communications;
    6,LAN



    Bare Fiber Color


    No.4 Ribbon FiberNo.8 Ribbon FiberNo.12 Ribbon Fiber
    1Blue1Blue1Blue
    2Orange2Orange2Orange
    3Green3Green3Green
    4Brown4Brown4Brown
    5Gray5Gray
    6White6White
    7Red7Red
    8Black8Black
    9Yellow
    10Violet
    11Pink
    12Aqua
