Multimode OM3 MPO Fiber Optic Patch Cord With 12 Cores 35dB Return Loss

Ask Lasest Price
Brand Name :	Haiyu Optical
Model Number :	HYG-MPO-ST-OM3-12F-0.3M
Certification :	Rohs,CE, ISO
Price :	Negotiable
Payment Terms :	T/T, Western Union, MoneyGram
Supply Ability :	1000pcs per day
Delivery Time :	2-3 working days

Add to Cart

Product Details
Company Profile

Multimode OM3 MPO Fiber Optic Patch Cord With 12 Cores 35dB Return Loss

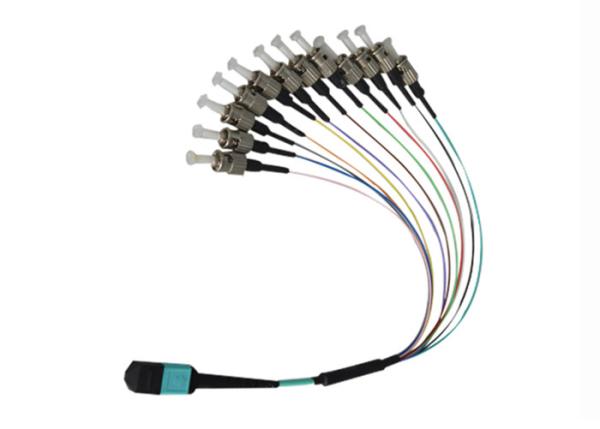

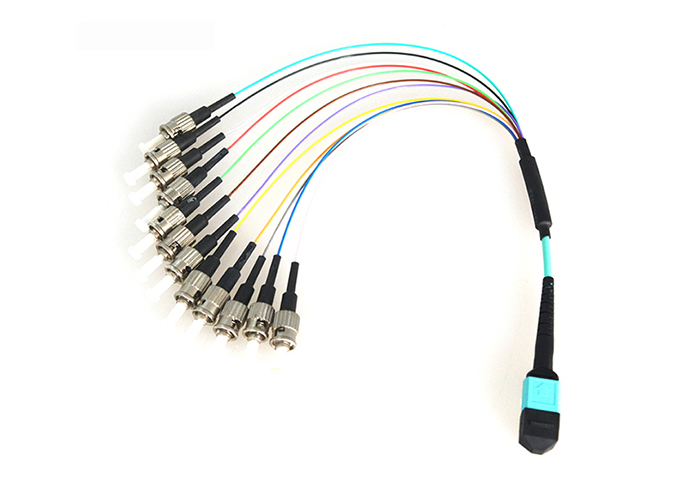

Multimode OM3 12 Cores MPO-ST Interface MPO Fiber Optic Patch Cord

Specification:

Parameters		Min.	Typical	Max.	Unit.
Operating Wavelength	Single Mode	1310		1620	nm
Operating Wavelength	Multi-mode	850		1310	nm
MPO Insertion Loss	Single Mode			0.6	dB
	Single Mode Low Loss		0.3	0.35
	Multi-mode			0.75
Single Fiber Insertion Loss (Fan-out side)	Single Mode			0.2	dB
	Single Mode Low Loss			0.3
	Multi-mode			0.3
Return Loss	Single Mode	50			dB
	Single Mode Low Loss	60
	Multi-mode	30
Operating Temperature		- 20		+ 70	°C
Fiber Type		SM ITU-T G652 and IEC 60793-2-50 B1.3 SM ITU-T G657A2/B2 and IEC 60793-2-50 B1.6A OM3 ISO/IEC 11801 and IEC 60793-2-10 Ala.2
Cable Jacket Type	Ribbon / Fan-out	LSZH
Cable Jacket Color	Yellow	G652 and G657 Single mode fiber
	Orange	OM2 Multi-mode fiber
	Aqua	OM3 fiber
Flammability Rating		IEC-60332-1, IEC-61034, IEC-60754-1 and 2

Note: 1) IL is tested in room temperature. 2)Total IL is MPO IL + all Fan-out side IL. 3)Tested at 1310nm and 1550nm for single-mode jumper, 850nm and 1310nm for multi-mode jumper.

Description:

MPO/ multi-fiber cabling system is ideally suited for a high density environment that demands space saving and innovative cable management solutions. MPO fan-out supports various connections from multi-fiber to single-fiber out. We also offer various other MPO products such as MPO cassettes, modules and enclosures. These cassettes provide secure transition between MPO and LC or SC connections.

Features:

Improves and simplifies fiber routing
Decreases fiber management space
OEM or customized for special applications
Low insertion loss and reflectance
High Density
Snap-In cassette panel for easy installation, removal and expansion

Applications:

1,Optical fiber communications systems;

2,Optical fiber access network;

3,Optical fiber CATV.

4,Optical fiber test equipments;

5,Optical fiber data communications;

Environmental Reliability Test

The performance of the patchcords has been carefully designed to meet the IEC standards, GR-326-CORE, in the test of optical characteristics, vibration test, thermal cycling, impact resistance, salt spray erosion, thermal aging, humidity resistance and others
