Two Cores Armored Fiber Optical Patch Cord Single / Multi Mode Type

Product Categories

Shenzhen Haiyu Optics Communication Equipment Co., Ltd.

Contact Now

Two Cores Armored Fiber Optical Patch Cord Single / Multi Mode Type

Ask Lasest Price
Brand Name :	Haiyu Optical
Model Number :	HYG-FTTA-PDLC-MM-02
Certification :	CE, ROHS, ISO9001
Price :	Negotiable
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	2000 pcs per day
Delivery Time :	3-5 working days

Add to Cart

Product Details
Company Profile

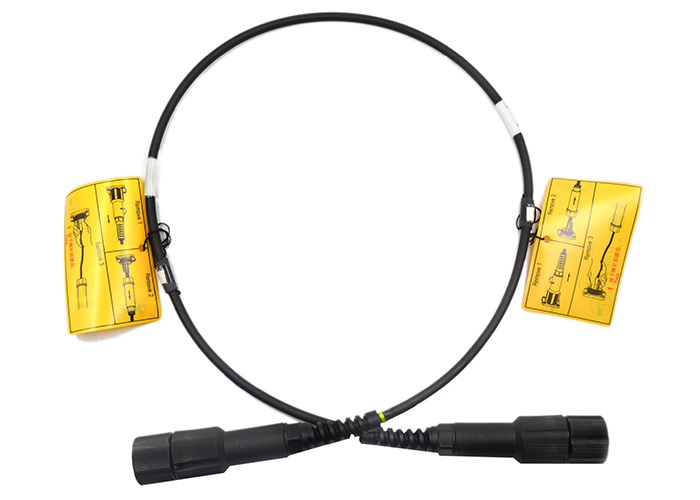

Two Cores Armored Fiber Optical Patch Cord Single / Multi Mode Type

PDLC Connector Armored Fiber Optic Patch Cable Optical Patch Cord

Specification:

Item		Description	Standard
Cable Model		GYFJH-4B1 / GYFJH-2B1 / GYFJH-2A1
Number Optic-cable Core		2
Weight Kg/km		45.0
Outside Dia. mm		Φ7.0±0.2
Outer Sheath	material	LSZH	YD/T 1113-2001
	color	BLACK
	thickness	1mm
Tight buffer	material	FRP
Tight buffer	Dia. mm	Φ1.0±0.1
Subunit	Quantity(pcs)	2
	Sheath Dia.	Φ2±0.1mm
	Sheath Material & Color	LSZH & yellow
	Reinforced core	aramid fiber
	Mark Unit	Differ A,B,C and D fiber within 10mm	GB/T 6995.2
Fiber core	Fiber Type	G.652D
	sheath color	white
	Sheath material	LSZH
	Out-Dia fiber for Tight layer	0.90±0.05 mm
	Fiber specification	9/125(G652D)
Allowable Tension		Short term ≥500N
Allowable Tension		Long term ≥300N
inflaming retarding Class		Confirm to IEC60332-3C
Mini Bending radius		10D
Fiber Cable Printing		Manufacturer +fiber cable model + fiber cable transmission model + standard +LSZH + Production Date
Working life		≥25years

*all materials confirm to RoHS

Description:

FTTA outdoor CPRI SC/LC/FC/ST fiber patch cable for the new generation wireless base stations (WCDMA/TD-SCDMA/WiMax/GSM). Such products can be meet the FTTA(fiber to the top of the tower) program requirements for outdoor environment conditions and adverse weather conditions. Especially in the 3G, 4G, 5G and WiMax base stations and fiber-optic distributed zoom technology, CPRI fiber patch cable are rapidly becoming the standard connector interface.

Features:

Good mechanical and environmental characteristics;
Flame retardant characteristics meet the requirements of relevant standards;
The mechanical characteristics of jacket meet the requirements of relevant standards;
Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data transmission;
Meet various requirements of market and clients
Waterproof with PDLC connector

Applications:

3G 4G base station used
Aerospace & Defence
Equipment diagnosis
FO sensor
FTTA ,FTTP, FTTX,WIMAX
BBU, RRU, RRH, LTE
