    12F MPO Fiber Optic Patch Cord Male 6 DLC Uniboot Connector 10G OM3 Aqua Color

    Ask Lasest Price
    Brand Name : Haiyu Optical
    Model Number : HYG-MPO-LC-OM3-12F-2M
    Certification : Rohs,CE, ISO
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 2000pcs per day
    Delivery Time : 2-3 working days
    • Product Details
    • Company Profile

    12F MPO Fiber Optic Patch Cord Male 6 DLC Uniboot Connector 10G OM3 Aqua Color

    12F MPO Male -6 DLC Uniboot Connector 10G OM3 Aqua Color Fiber Optic Patch Cord


    MPO-LC Fiber Optic Patch Cord Description:

    MPO/ multi-fiber cabling system is ideally suited for a high density environment that demands space saving and innovative cable management solutions. MPO fan-out supports various connections from multi-fiber to single-fiber out. We also offer various other MPO products such as MPO cassettes, modules and enclosures. These cassettes provide secure transition between MPO and LC or SC connections.


    MPO-LC Fiber Optic Patch Cord Specification:


    ParametersMin.TypicalMax.Unit.
    Operating WavelengthSingle Mode13101620nm
    Multi-mode8501310
    MPO Insertion LossSingle Mode0.6dB
    Single Mode Low Loss0.30.35
    Multi-mode0.75

    Single Fiber Insertion Loss

    (Fan-out side)

    		Single Mode0.2dB
    Single Mode Low Loss0.3
    Multi-mode0.3
    Return LossSingle Mode50dB
    Single Mode Low Loss60
    Multi-mode30
    Operating Temperature- 20+ 70°C
    Fiber Type

    SM ITU-T G652 and IEC 60793-2-50 B1.3

    SM ITU-T G657A2/B2 and IEC 60793-2-50 B1.6A

    OM3 ISO/IEC 11801 and IEC 60793-2-10 Ala.2

    Cable Jacket TypeRibbon / Fan-outLSZH
    Cable Jacket ColorYellowG652 and G657 Single mode fiber
    OrangeOM2 Multi-mode fiber
    AquaOM3 fiber
    Flammability RatingIEC-60332-1, IEC-61034, IEC-60754-1 and 2

    Note: 1) IL is tested in room temperature. 2)Total IL is MPO IL + all Fan-out side IL. 3)Tested at 1310nm and 1550nm for single-mode jumper, 850nm and 1310nm for multi-mode jumper.


    MPO-LC Fiber Optic Patch Cord Features:

    • Decreases fiber management space
    • OEM or customized for special applications
    • Low insertion loss and reflectance
    • High Density
    • Snap-In cassette panel for easy installation, removal and expansion

    MPO-LC Fiber Optic Patch Cord Applications:

    • Optical System Access Network
    • Telecommunications networks
    • Broadband/CATV networks
    • Data communications networks, including high-bandwidth equipment

    MPO-LC Fiber Optic Patch Cord Environmental Reliability Test


    The performance of the patchcords has been carefully designed to meet the IEC standards, GR-326-CORE, in the test of optical characteristics, vibration test, thermal cycling, impact resistance, salt spray erosion, thermal aging, humidity resistance and others.

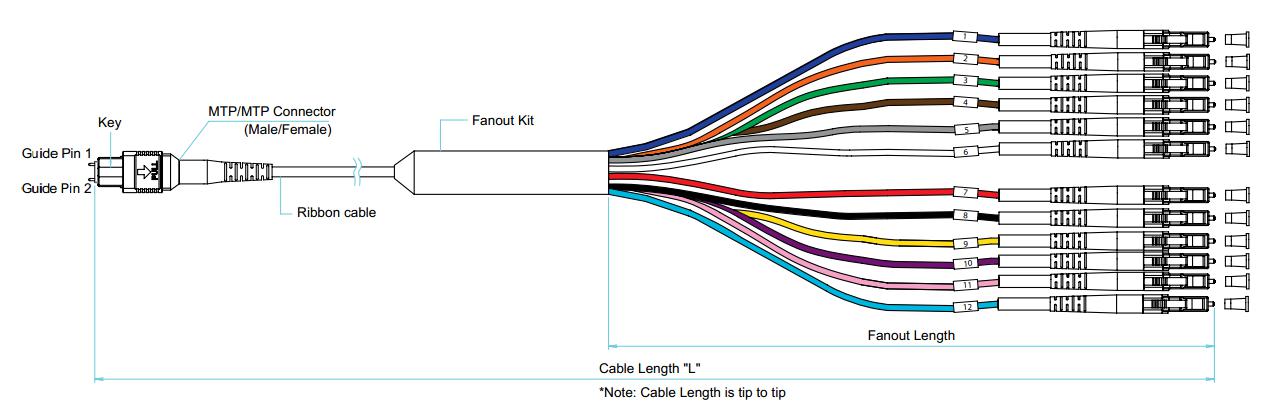

    MPO-LC Fiber Optic Patch Cord Drawing:
