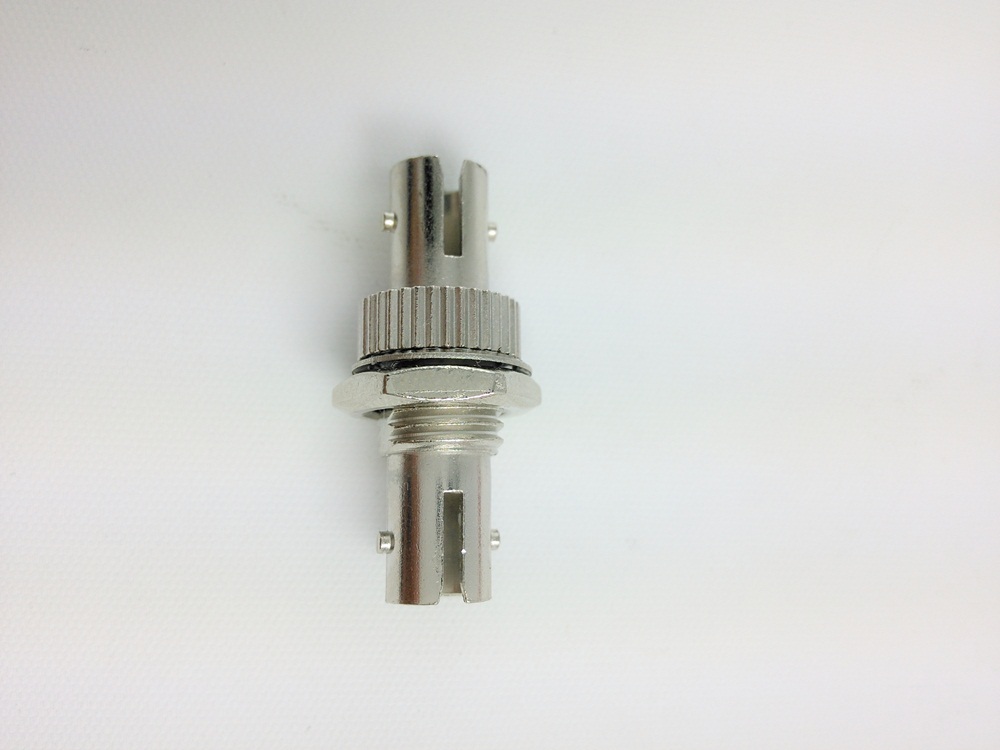

ST FiberOpticAdapter (Coupler) for SC, FC, ST, LC Connectors SM / MM, Sx / Dx
Our company from the United States and Japan imported from optical
passive components production assembly equipment and testing
instrument, the formation of optical passive production line. At
present, can provide traditional FC, SC, ST fiber connector and LC,
double SC, MT - RJ, MU such as small optical fiber connector, all
provide optical fiber connection activities connector all through
the ministry of information industry optical communication product
quality supervision and inspection center for qualified.
sc apc optic fiber adapter/ sc fiber optic adapter/ st fiber optic
adapter
Product characteristic
compatibility, repeatability
high precision size has good compatibility
resistance to friction ceramic casing
environmental stability good
card lock plug sc apc optic fiber adapter/ sc fiber optic adapter/ st fiber optic
adapter
provide separate ST type, SC type, FC type, LC type and so on many
kinds of adapter
Application
any optical fiber connection
fiber to the home, optical fiber sensors, testing instruments, such
as optical fiber point
sc apc optic fiber adapter/ sc fiber optic adapter/ st fiber optic
adapter
technical parameters
material:ceramic
repeatability: ≥1000 times
insert loss: SM ≤0.2 dB, MM ≤ 0.3 dB
compatibility: ≤ 0.2 dB
sc apc optic fiber adapter/ sc fiber optic adapter/ st fiber optic
adapter
Optical Parameter | W/Japanese Ceramic Sleeve | W/Chinese Ceramic Sleeve | W/P.B Sleeve |
Insertion Loss | <0.1 dB | <0.2dB | <0.3dB |
Durability | <0.10 dB typical change,1000 times | <0.2dB typical change,1000 times | <0.30 dB typical change,500 times |
Operating Temp | -20~75°C |
Storage Temp. | -40~85°C |
sc apc optic fiber adapter/ sc fiber optic adapter/ st fiber optic
adapter
