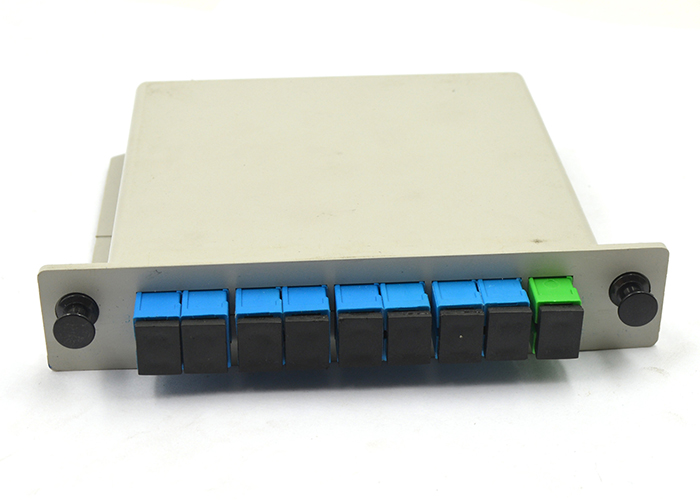

    SC UPC 1x8 PLC Splitter Micro Module Type 1310 / 1550nm Wave Length

    Ask Lasest Price
    Brand Name : Haiyu Optical
    Model Number : HYG-SPL-SC-1*8
    Certification : CE, ISO9001, Rohs
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram, L/C
    Supply Ability : 1000pcs per day
    Delivery Time : 2-3 working days
    • Product Details
    • Company Profile

    SC UPC 1x8 PLC Splitter Micro Module Type 1310 / 1550nm Wave Length

    1x8 PLC Splitter 900um SC UPC fiber optic splitter Micro Module Type


    Product Description:


    PLC splitter is an optical power distribution component based on silica optical waveguide technology. It is widely used in PON networks to realize optical signal power management.


    Specification:


    Type1x42x41x82x81x162x161x322x321x64
    Fiber Type9/125um SMF28e or customer specified
    Operation Wavelength1260~1650nm
    Insertion Loss (dB)(Typ)<7.1<7.3<10.0<10.3<13.5<14.0<16.8<17.3<20.0
    Insertion Loss (dB)(Max)1<7.5<7.7<10.5<10.8<14.0<14.7<17.5<18<20.3
    Uniformity (dB)(Max)<0.7<1.0<1.0<1.2<1.5<2.0<2.0<2.5<2.5
    Polarization Dependent Loss (dB)(Max)<0.3<0.40<0.30<0.40<0.3
    Directivity (dB)(Min)≥55
    Return Loss (dB)(Min)≥55

    Operating Temperature

    ( oC)

    		-40 to +85

    Storage Temperature

    ( oC)

    		-40 to +85

    Insertion loss is excluding connector loss at typically 0.2dB.


    Benefits:


    • Low insertion and low PDL

    • Excellent environmental stability

    • Compliant with Telcordia GR-1209/1221-Core

    • Cable sizes 250μm, 900μm and 3mm

    • Good uniformity


    Product application:

    ​

    • FTTx (FTTP, FTTH, FTTN, FTTC)

    • Passive Optical Networks (PON)

    • Local Area Networks (LAN)

    • CATV system

    • Test equipment
