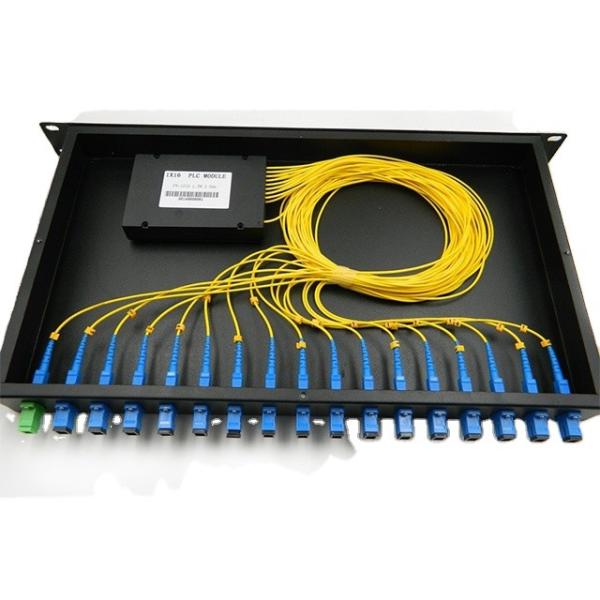

    Rack Mounted SMF 1550nm 1x16 Fiber Optical Splitter Box

    Ask Lasest Price
    Brand Name : HYG
    Model Number : HYG-SPLITTER-1X16-0709
    Certification : CE RoHS FCC
    Supply Ability : 100000 Piece/Pieces per Month
    Price : $15.00 - $100.00 / Piece
    • Product Details
    • Company Profile

    Rack Mounted SMF 1550nm 1x16 Fiber Optical Splitter Box

    Rack Mounted Type PLC Splitter 1x16 Fiber Optical Splitter Optic Box


    Quick Detail:

    1. Fiber type: G652D, G657A1, G657A2
    2. Cable jacket: PVC, LSZH, OFNR, OFNP
    3. Cable length: 1M, 1.5m…customized
    4. Package: ABS, Steel tube
    5. Connector: SC, LC, ST, FC, MU, E2000
    6. Ferrule end-face: PC, UPC, APC

    Description:

    We can provide whole series of 1xN and 2xN splitter products that are tailored for specific applications.

    Features:

    1. Excellent directivity
    2. Good channel-to-channel uniformity
    3. High cost-effectiveness
    4. High environmental and mechanical stability

    Applications:

    1. Fiber optical communication system
    2. Fiber optical sensors
    3. CATV System
    4. LAN System
    5. WAN System

    Specification:


    Table 1 – 1×N PLC Splitter

    Parameters1×21×41×81×161×321×64
    Operating Wavelength (nm)1260~1650
    Fiber TypeG657A or customer specified
    Insertion Loss (dB)(P/S Grade)3.8/4.07.1/7.310.2/10.513.5/13.716.5/16.920.5/21.0
    Loss Uniformity (dB)0.40.60.81.21.52.0
    Return Loss (dB) (P/S Grade)55/5055/5055/5055/5055/5055/50
    Polarization Dependent Loss(dB)0.20.20.20.250.30.35
    Directivity (dB)555555555555
    Wavelength Dependent Loss(dB)0.30.30.30.50.50.5
    Temperature Stability(-40~85 ℃)(dB)0.40.40.40.50.50.5
    Operating Temperature (℃)-40~85
    Storage Temperature (℃)-40~85
    PackageSteel Tube or ABS

    Table 2 – 2×N PLC Splitter

    Parameters2×22×42×82×162×322×64
    Operating Wavelength (nm)1260~1650
    Fiber TypeG657A or customer specified
    Insertion Loss (dB)4.07.611.014.417.521.0
    Loss Uniformity (dB)0.61.01.21.51.82.2
    Return Loss (dB) (P/S Grade)55/5055/5055/5055/5055/5055/50
    Polarization Dependent Loss(dB)0.20.20.30.30.40.4
    Directivity (dB)555555555555
    Wavelength Dependent Loss(dB)0.30.40.50.50.50.5
    Temperature Stability(-40~85 ℃)(dB)0.40.40.40.50.50.5
    Operating Temperature (℃)-40~85
    Storage Temperature (℃)-40~85
    PackageSteel Tube or ABS


    Notes:

    1. Specified without connectors.
    2. Add an additional 0.15dB loss per connector.

    Shipping:

    1. Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
    2. Airport to Airport: by air
    3. Seaport to Seaport: by sea (our location Shenzhen is a seaport.)

    Our service:

    1. We could print your company name on the cable.
    2. Standard and customized OEM products from small to large quantity are welcome.
    3. Compliance with global environmental industry with RoHS and SGS standards.
    4. All products are 100% fully tested by our technical expertise.

    Company information

    About us

    The HYG Optics, founded in 2000, is focus on design and manufactured fiber optic communication products. It has developed a range of products including Indoor and outdoor optical cables, fiber optic jumpers, pigtails, connectors and adapters, network solution equipment like optic media converters, attenuators, tranceivers, optical models and other accessories. Widely used in telecom communication, mobile communication, network solution, radio and television, etc.
    HYG Quality Assurance
    Our ISO9001:2008 certified quality management systems have been refined for flexibility and efficiency, and produce a high quality, high reliability, low cost and diverse product range. Other quality system we complying with ISO14001, CE, Rohs and 5S system.
    Advanced high precision test equipment: Insertion and return loss tester, 3D Interferometer.
    The location
    The company is located in Shenzhen, near by Hongkong, enjoying the convenient transportation. Our products are exported to USA, Germany, France, Russia, the UAE, Indonesia and so on. For our long-term development, our company cooperates with Corning, OFS, YFOC, CCTC, etc.
    Our mission
    QUALITY TO SURVIVE, INNOVATION FOR DEVELOPMENT.
    Rack Mounted SMF 1550nm 1x16 Fiber Optical Splitter Box

    Rack Mounted SMF 1550nm 1x16 Fiber Optical Splitter Box


    After-Sales Service

    Rack Mounted SMF 1550nm 1x16 Fiber Optical Splitter Box


    OEM & ODM is accepted, any questions welcome to contact us.

    Sales Manager: Joyce Tan

    Phone: 86 13066935405

    Tel: 86 755 29467029

    Email: hyglink[a]hyglink.com

    Skype: joycetan75

    Weichat: tan_aihua
