Singlemode MPO Fiber Optic Patch Cord 12 Cores Yellow Color CE Certification

Ask Lasest Price
Brand Name :	Haiyu Optical
Model Number :	HYG-MPO-FC-SM-12F-1M
Certification :	CE/ROHS/ISO9001
Price :	Negotiable
Payment Terms :	T/T, Western Union, MoneyGram
Supply Ability :	1000pcs per day
Delivery Time :	2-3 working days

Add to Cart

Product Details
Company Profile

Singlemode MPO Fiber Optic Patch Cord 12 Cores Yellow Color CE Certification

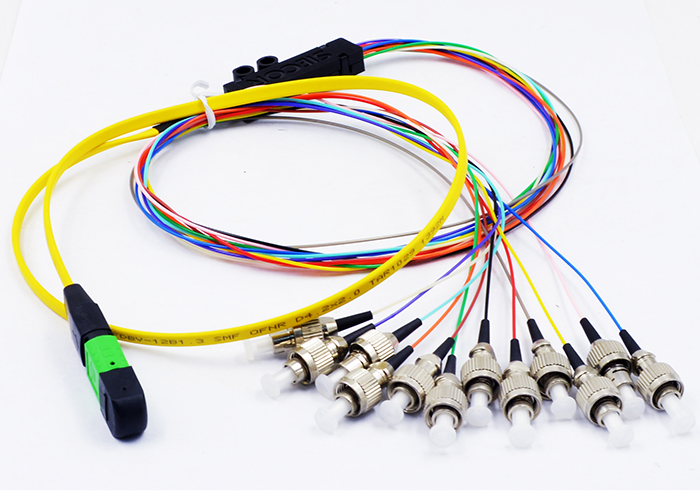

Singlemode 12 Cores MPO-FC Interface 9/125 MPO Fiber Optic Patch Cord

Specification:

PERFORMANCE INDEX
MPO CONNECTOR
Fiber type	SM		MM
	UPC	APC	PC
Insertion Loss (IL)Low(dB)	≤0.35		≤0.35
Insertion Loss (IL)Max(dB)	≤0.75		≤0.6
Return Loss (RL)(dB)	≥50	≥60	≥20
Endurance (500 remates)(dB)	IL<0.3		IL<0.2
Operating Temperature(℃)	-10 ~ +60
Storage Temperature(℃)	-40 ~ +85
Maximum tensile strengthe(N)	100

FC CONNECTOR

	Single-mode			Multimode
	PC	UPC	APC	PC
Insertion Loss	≤0.3dB	≤0.3dB	≤0.2dB	≤0.2dB
Return Loss	≥50dB	≥50dB	≥60dB	≥35dB
Operating Wavelength	1310nm, 1550nm			850nm,1300nm
Repeatability	≤0.1dB
Working Temperature	-40°C~+75°C
Service Life	>1000 mating cycles

Description:

MPO/ multi-fiber cabling system is ideally suited for a high density environment that demands space saving and innovative cable management solutions. MPO fan-out supports various connections from multi-fiber to single-fiber out. We also offer various other MPO products such as MPO cassettes, modules and enclosures. These cassettes provide secure transition between MPO and LC or SC connections.

Features:

1.High repeatability & credibility
2.Competitive price
3.Fast delivery time
4.Low insertion loss

Applications:

1,Optical fiber communications systems;
2,Optical fiber access network;
3,Optical fiber CATV.
4,Optical fiber test equipments;
5,Optical fiber data communications;

Environmental Reliability Test

The performance of the patchcords has been carefully designed to meet the IEC standards, GR-326-CORE, in the test of optical characteristics, vibration test, thermal cycling, impact resistance, salt spray erosion, thermal aging, humidity resistance and others
