    MPO To LC Fanout 10G OM3 Patch Cord 24 Cores CE / ROHS Certification

    Ask Lasest Price
    Brand Name : Haiyu Optical
    Model Number : HYG-MPO-LC-OM3-24F-0.5M
    Certification : CE/ROHS/ISO9001
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 1000pcs per day
    Delivery Time : 2-3 working days
    • Product Details
    • Company Profile

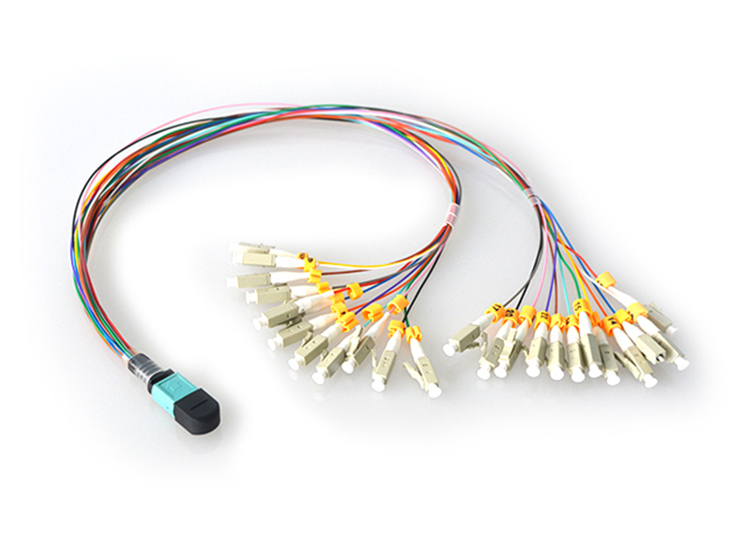

    MPO To LC Fanout 10G OM3 Patch Cord 24 Cores CE / ROHS Certification

    24 Cores MPO to LC Fanout 10G OM3 Fiber Optic Patch Cord for MTP /MPO Cassettes


    Specification:


    ParametersMin.TypicalMax.Unit.
    Operating WavelengthSingle Mode13101620nm
    Multi-mode8501310
    MPO Insertion LossSingle Mode0.6dB
    Single Mode Low Loss0.30.35
    Multi-mode0.75

    Single Fiber Insertion Loss

    (Fan-out side)

    		Single Mode0.2dB
    Single Mode Low Loss0.3
    Multi-mode0.3
    Return LossSingle Mode50dB
    Single Mode Low Loss60
    Multi-mode30
    Operating Temperature- 20+ 70°C
    Fiber Type

    SM ITU-T G652 and IEC 60793-2-50 B1.3

    SM ITU-T G657A2/B2 and IEC 60793-2-50 B1.6A

    OM3 ISO/IEC 11801 and IEC 60793-2-10 Ala.2

    Cable Jacket TypeRibbon / Fan-outLSZH
    Cable Jacket ColorYellowG652 and G657 Single mode fiber
    OrangeOM2 Multi-mode fiber
    AquaOM3 fiber
    Flammability RatingIEC-60332-1, IEC-61034, IEC-60754-1 and 2

    Note: 1) IL is tested in room temperature. 2)Total IL is MPO IL + all Fan-out side IL. 3)Tested at 1310nm and 1550nm for single-mode jumper, 850nm and 1310nm for multi-mode jumper.


    Transmission
    CharacteristicsUnitSMStd. 50um62.5umOM2OM3
    Max. Attenuation

    dB/km

    (nm)

    0.4/0.3

    (1310/1550)

    2.8

    (850)

    3.0

    (850)

    2.8

    (850)

    2.8

    (850)

    Min. Bandwidth

    MHz•km

    (nm)

    		-

    500/500

    (850/1300)

    200/200

    (850/1300

    750

    (850)

    2000

    (850)

    Dispersion Coefficient

    ps/

    nm2•km

    <3.0

    (1310nm)

    		----

    Description:

    MPO/ multi-fiber cabling system is ideally suited for a high density environment that demands space saving and innovative cable management solutions. MPO fan-out supports various connections from multi-fiber to single-fiber out. We also offer various other MPO products such as MPO cassettes, modules and enclosures. These cassettes provide secure transition between MPO and LC or SC connections.

    Features:

    • Improves and simplifies fiber routing
    • Decreases fiber management space
    • Low insertion loss and reflectance
    • High Density
    • Snap-In cassette panel for easy installation, removal and expansion

    Applications:

    • Optical System Access Network
    • Telecommunications networks
    • Broadband/CATV networks
    • Data communications networks, including high-bandwidth equipment


    Product Tags:

    fiber optic jumper



    ribbon fiber optic cable
