Single Mode Outdoor Fiber Patch Cord , MTP MPO Armored Fiber Optic Patch Cord

Ask Lasest Price
Brand Name :	Haiyu Optical
Model Number :	HYG-MPO-MPO-Armored-SM-12F-20M
Certification :	Rohs,CE, ISO
Price :	Negotiable
Payment Terms :	T/T, Western Union, MoneyGram
Supply Ability :	1000pcs per day
Delivery Time :	2-3 working days

Add to Cart

Product Details
Company Profile

Single Mode Outdoor Fiber Patch Cord , MTP MPO Armored Fiber Optic Patch Cord

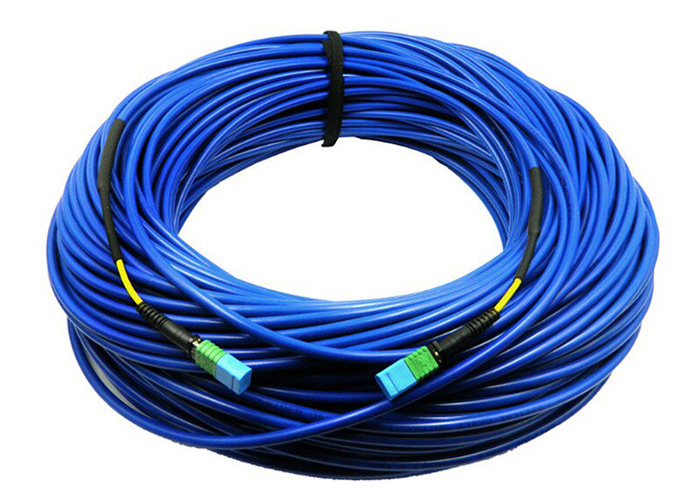

Outdoor 12 Fibre Singlemode Armored MTP MPO Fiber Optic Patch Cord

Specification:

Parameters		Min.	Typical	Max.	Unit.
Operating Wavelength	Single Mode	1310		1620	nm
	Multi-mode	850		1310
MPO Insertion Loss	Single Mode			0.6	dB
	Single Mode Low Loss		0.3	0.35
	Multi-mode			0.75
Single Fiber Insertion Loss (Fan-out side)	Single Mode			0.2	dB
	Single Mode Low Loss			0.3
	Multi-mode			0.3
Return Loss	Single Mode	50			dB
	Single Mode Low Loss	60
	Multi-mode	30
Operating Temperature		- 20		+ 70	°C

Description:

The MPO Armored series of fiber cable assemblies have incorporated steel into their construction, increasing their overall resistance to physical damage.

The Armored jacket surrounds the delicate internal fibers with a steel braid, allowing for a balance between flexibility and protection.

An additional layer of Kevlar rests underneath the steel braid, further protecting the optical fibers from tampering or environmental damage.

The thin yet dependable nature of the Armored series allows the installation of fiber optic cabling in otherwise uninhabitable areas such as those in light to medium indoor and outdoor areas where fiber installations may often fail.

Features:

Improves and simplifies fiber routing
Decreases fiber management space
OEM or customized for special applications
Low insertion loss and reflectance
High Density

Applications:

Optical System Access Network
Telecommunications networks
Broadband/CATV networks
Data communications networks, including high-bandwidth equipment
