    ST LC SC FC Multimode Fiber Patch Cord 1 / 2 / 5M Length -40 - 75℃ Operating

    Ask Lasest Price
    Brand Name : Haiyuoptical
    Model Number : HYG-MM-2F-006
    Certification : Rohs,CE, ISO
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 1000pcs per day
    Delivery Time : 2-3 working days
    • Product Details
    • Company Profile

    ST LC SC FC Multimode Fiber Patch Cord 1 / 2 / 5M Length -40 - 75℃ Operating

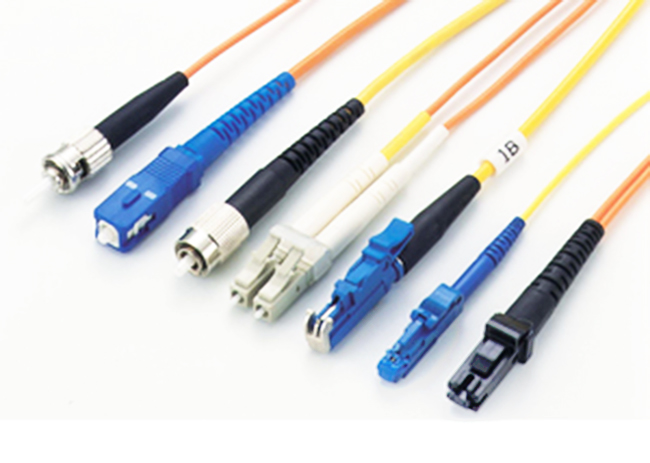

    Pre-terminated ST LC SC FC Optical Multimode Fiber Patch Cord


    Specification:


    Single-modeMultimode
    PCUPCAPCPC
    Insertion Loss≤0.3dB≤0.3dB≤0.2dB≤0.2dB
    Return Loss≥50dB≥50dB≥60dB≥35dB
    Operating Wavelength1310nm, 1550nm850nm,1300nm
    Repeatability≤0.1dB
    Working Temperature-40℃~+75℃
    Service Life>1000 mating cycles

    Description:

    Fiber optic patch cord is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch, or other telecommunication equipment.


    Fiber optic patch cord is available in both single mode and multimode versions.


    The connector has a zirconia ceramic ferrule with pre-polished PC profile and convex spherical end.


    These end-face types allow for faster polishing, and low back reflection and optical loss, while ensuring maximum repeatability.


    Features:

    1. Low insertion loss and back reflection loss
    2. Ferrule end surface pre-domed
    3. Excellent mechanical endurance
    4. Good in repeatability
    5. Good in exchange

    Applications:

    1. Telecommunication
    2. Computer networks
    3. CATV networks
    4. Active device termination
    5. Instrumentation
