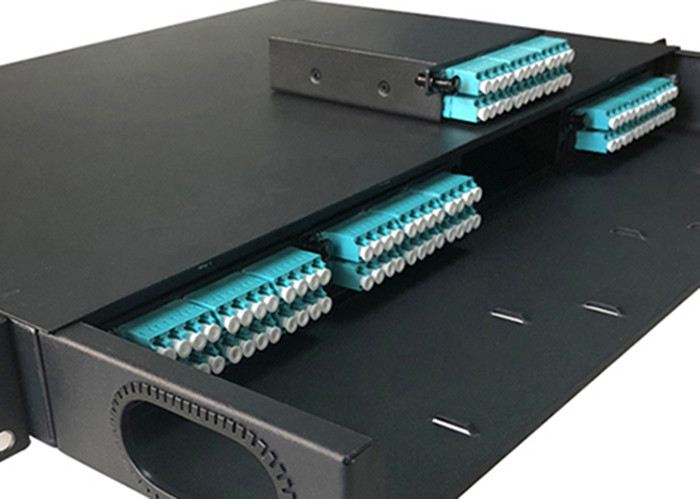

    MTP / MPO Fiber Optic Patch Panel High Density 1U 19 Inch 96 Cores

    Ask Lasest Price
    Brand Name : Haiyu Optical
    Model Number : HYG-MPO-96F-001
    Certification : ROHS， ISO，CE
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram, L/C
    Supply Ability : 2000sets per week
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    MTP / MPO Fiber Optic Patch Panel High Density 1U 19 Inch 96 Cores

    High Density 1U 19 Inch 96 Cores MTP / MPO Fiber Optic Patch Panel


    Specification:


    PRODUCT PARAMETERS OF OPTICAL PATCH PANEL
    Name1U 96 cores MPO PATCH PANELTypeStandrad 1U 19" rack mouted type
    Model6 port quad LC 24 FIBERSMaterial1.3mm sheet metal
    Dimension485*360*45mmN.W.5.5kgs
    ColorBlack, white optionalWorking temperature

    -45℃~80℃

    Loading4* 24F MPO-LC optcial module.

    Description:


    This MPO/MTP Fiber optic patch panels provide secure transitions between MPO/MTP and LC discrete connector interface. They are used to interface MPO/MTP backbones with LC patching and active equipment connections.

    The Pre-populated panel allows repid deployment of high density data center infrastricture as well as improved trouble shooting and reconfiguration during moves, adds and changes. The shallow depth of the Slim Ultra Panel makes it suitable for copper racking systems.

    The MPO/MTP Fiber optic patch panels contain factory controlled and tested MPO/MTP -LC fanouts to deliver optical performance and reliability. Low loss MPO/MTP Elite and LC Premium versions are offered featuring significantly improved low insertion losses for demanding low power budget, high speed networks.


    Features:


    Fits 19" wide rack units
    Reliability - 100% Tested.Factory terminated and tested
    Built-in spool for easy cable management
    Constructed of high-quality cold rolled steel sheet

    1U patch panel capacity comes up to 144F fully loaded , up to 12 MPO/MTP® standard connectors.

    Application:


    Optical access network (OAN)
    Data processing centers/Cable television (CATV)
    Local area network (LAN)
    Coarse wavelength division
    PLC system
    FTTH


    MTP / MPO Fiber Optic Patch Panel High Density 1U 19 Inch 96 Cores
