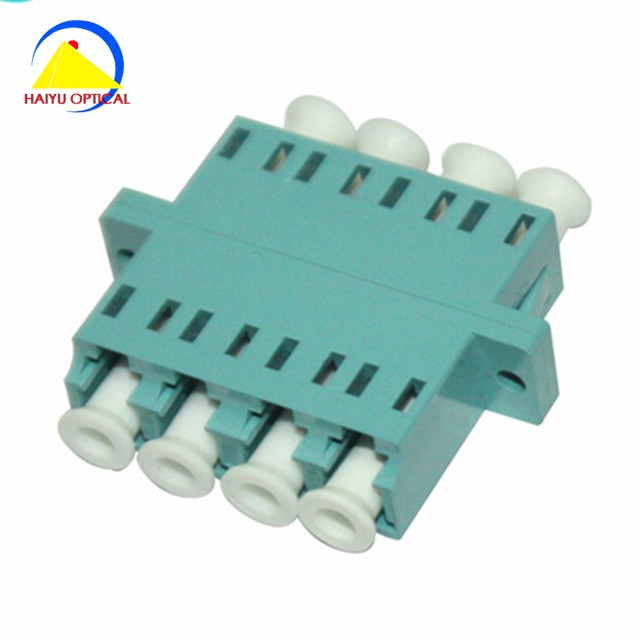

    LC/PC Quad with SC Duplex Flange fiber optic adapter

    Ask Lasest Price
    Brand Name : Haiyu optical
    Model Number : HYG-AD-LC-04-01
    Price : $1.50
    • Product Details
    • Company Profile

    LC/PC Quad with SC Duplex Flange fiber optic adapter

    Product Description

    LC/PC Quad with SC Duplex Flange fiber optic adapter

    Fiber optic adapter is also called fiber optic coupler. It is used to provide a cable to cable fiber connection. People sometimes also name them to be mating sleeves and hybrid adaptors. Mating sleeves means this fiber optic adapter is used to connect the same type fiber optic connectors, while hybrid adaptors are the fiber optic cable adaptor types used to connect different kinds of fiber optic connectors. We provide a complete line of adapters for fiber optic connection, like ST, SC, FC, LC, MTRJ, MPO, MU, SMA, E2000, DIN style fiber optic adapters for both multimode and single-mode fiber applications.


    Features

    CATV
    Telecommunication networks
    Local Area Networks (LANs)
    Metro networks
    Data processing networks
    Industrial, military and medical

    Application

    Compact design
    Telcordia, TIA/IEA, IEC and JIS compliance
    High precision alignment
    Low insertion and return loss and back reflection
    Choice of metal or plastic housing, mount style & flange options

    Specifications

    Repeatability: ≥1000 times
    Insert loss: SM ≤0.2 dB, MM ≤ 0.3 dB
    Compatibility: ≤ 0.2 dB

    Parameter
    Unit
    SC
    SM
    MM
    PC
    UPC
    APC
    PC
    Insertion loss
    dB
    ≤0.2
    ≤0.1
    ≤0.2
    ≤0.2
    Return Loss
    dB
    ≥45
    ≥50
    ≥60
    ≥30
    Interchangeability
    dB
    ≤0.2
    Repeatability
    dB
    ≤0.2
    Mechanical endurance
    Time
    >1000
    Operating temperature
    °C
    -40~75
    Storage temperature
    °C
    -45~85
    Detailed Images
    LC/PC Quad with SC Duplex Flange fiber optic adapter
    LC/PC Quad with SC Duplex Flange fiber optic adapter
    LC/PC Quad with SC Duplex Flange fiber optic adapter
    LC/PC Quad with SC Duplex Flange fiber optic adapter
    LC/PC Quad with SC Duplex Flange fiber optic adapter


    Related Products

    LC adapters family.

    The LC Optical fiber adapters has simplex, duplex, quad types. According to shape, it has flange, flangeless, high low, high step, etc. According to color, it has blue, green, beige, black, aqua, purple etc.

    The normal housing material is plastic, also has metal housing.

    LC/PC Quad with SC Duplex Flange fiber optic adapter
    LC/PC Quad with SC Duplex Flange fiber optic adapter
    LC/PC Quad with SC Duplex Flange fiber optic adapter
    LC/PC Quad with SC Duplex Flange fiber optic adapter

    LC DX high low type


    LC DX SC flange type

    Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine.

    LC quad adapter


    Packing & Delivery
    LC/PC Quad with SC Duplex Flange fiber optic adapter
    LC/PC Quad with SC Duplex Flange fiber optic adapter

    Blister box.

    25pcs/box, also can pack in PE bag if you required.

    Carton.

    Use hign strong carton to protect the goods.

    Certifications
    LC/PC Quad with SC Duplex Flange fiber optic adapter

    Haiyu optical certificate.

    Haiyu optical has award ISO CE and Rosh certificate for our products.

    Our Company
    LC/PC Quad with SC Duplex Flange fiber optic adapter
    LC/PC Quad with SC Duplex Flange fiber optic adapter
    LC/PC Quad with SC Duplex Flange fiber optic adapter
    Contact US
    LC/PC Quad with SC Duplex Flange fiber optic adapter

    OEM & ODM is accepted, any questions welcome to contact us.
