    LSZH 1650nm 1x18 1x32 APC/UPC Fiber Optical Splitter

    Ask Lasest Price
    Brand Name : HYG
    Model Number : hyg-PL-0053
    Supply Ability : 5000 Piece/Pieces per Week
    Price : $5.00 - $25.00 / Piece
    • Product Details
    • Company Profile

    LSZH 1650nm 1x18 1x32 APC/UPC Fiber Optical Splitter

    PLC (Planar Lightwave Circuit) splitters is used for fiber optic signal splitting in PON networks: The compact size

    makes them suitable for installation in splice trays and placed in joint closures, cabinets or optical termination panels

    The PLC splitters are available with one or two input ports and up to 64 output ports.

    1*8 optical splitter:

    1.SM&MM plc splitter
    2.Low insertion loss and low PDL
    3.High reliability and channel

    1*8 optical splitter application:

    LAN, WAN and Metro Networks

    FTTH project & FTTX Deployments

    CATV System

    GPON, EPON

    Fiber Optic Test Equipment

    Data-base Transmit Broadband Net

    1*8 optical splitter technical specifications

    Wavelength(nm)

    1260-1650

    Parameters

    1×4

    1×8

    1×16

    1×32

    1×64

    2×4

    2×8

    2×16

    2×32

    Insertion Loss(with connector)(dB)

    ≤7.4

    ≤10.7

    ≤13.7

    ≤16.9

    ≤21

    ≤7.8

    ≤11.5

    ≤14.5

    ≤17.7

    Insertion Loss(W/O connector)(dB)

    ≤7.7

    ≤11.2

    ≤14.2

    ≤17.5

    ≤21.5

    ≤8.3

    ≤12

    ≤15

    ≤18.2

    Uniformity (dB)

    ≤0.8

    ≤1.0

    ≤1.4

    ≤1.9

    ≤2.7

    ≤1.7

    ≤1.7

    ≤2.2

    ≤2.7

    PDL(dB)

    ≤0.3

    ≤0.3

    ≤0.3

    ≤0.3

    ≤0.4

    ≤0.2

    ≤0.4

    ≤0.4

    ≤0.4

    Size(bare bype)

    (H×W×L)(mm)

    4×4×50

    4×7×50

    4×12×60

    4×4×50

    4×7×50

    Return Loss(dB)

    >50

    Directivity(dB)

    >55

    Temperature Range(°C)

    -40~+75

    Storage Temperature(°C)

    -40~+85

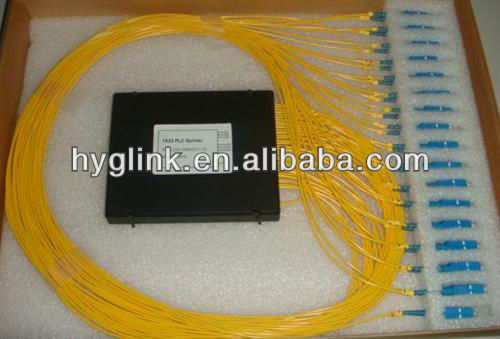

    1*8 optical splitter pictures:

    LSZH 1650nm 1x18 1x32 APC/UPC Fiber Optical Splitter

    LSZH 1650nm 1x18 1x32 APC/UPC Fiber Optical SplitterLSZH 1650nm 1x18 1x32 APC/UPC Fiber Optical Splitter

    LSZH 1650nm 1x18 1x32 APC/UPC Fiber Optical Splitter
