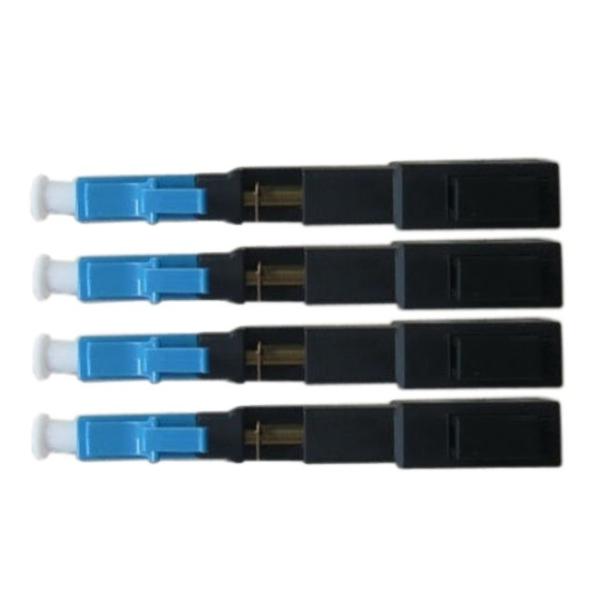

    Fiber optic LC/UPC fast connector

    Ask Lasest Price
    Brand Name : HYG
    Model Number : HYG-FACT-FC/UPC
    Certification : RoHS
    Supply Ability : 1000000 Piece/Pieces per Month lc/upc fiber optic quick connector
    Price : $2.00 - $5.00 / Piece
    • Product Details
    • Company Profile

    Fiber optic LC/UPC fast connector

    Fiber optic LC/UPC fast connector


    The Optical Field Assembly Connectors Precision metallic V-Groove components with co-axial self centering, excellent and durable fixing property. The structure base on unique box-building crimping technology. Preseting the Bending fiber prevent the cable from draging. Integrated protection of the casing to withstand harsh indoor environment. After terminating, both the optical and mechanical performance reach the standard for FTTH.

    Characteristics:

    Good performance and High success rate.

    Easiness in installation with average splicing time of 15 sec

    Special tool is simple and convenient to use.

    Reusable and repeat orperation times are up to 100.

    Integrated protection of the casing to prevent the connector form impact

    On line tension is up to 20N to protect the connector from the draging

    The maxmum tension is up to 100N. It’s the most safety connector

    Application:


    FTTX/FTTH fiber to the home

    Local area network and smart grid

    Mining and Oil

    Security equipment

    Optical Characteristics:

    ItemsG.652G.657Asuper soft fiber
    Insert loss@1310 nm/≤ 0.3dB≤ 0.25 dB
    @1550 nm/≤ 0.35 dB≤ 0.3 dB
    Return loss@1310 nm/≤ -40 dB≤ -45 dB
    @1550 nm/≤ -40 dB≤ -45 dB

    Environment Parameters

    Test ItemChange ILChange RLTest condition
    Mechanical life≤ 0.2 dB≤ 5 dB500 (times)300/100010D/20D
    On line tension≤ 0.2 dB≤ 5 dB20N300/100010D/20D
    Impation≤ 0.2 dB≤ 5 dB4m high / 3 axis/ 3times300/100010D/20D
    High temperature storage≤ 0.2 dB≤ 5 dB80C / 96(hours)300/100010D/20D
    Low temperature storage≤ 0.2 dB≤ 5 dB-40C / 96(hours)
    Temperature cycling≤ 0.2 dB≤ 5 dB-40C – 75C / 96(hours)

    Storage/Operating Temperature: -40°C to +70°C


    Fiber optic LC/UPC fast connectorFiber optic LC/UPC fast connectorFiber optic LC/UPC fast connectorFiber optic LC/UPC fast connectorFiber optic LC/UPC fast connector
