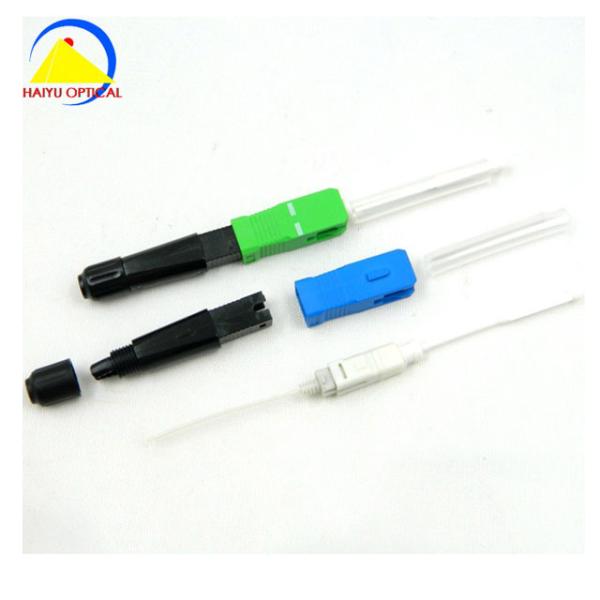

    factory supply high quality fiber optic sc fast connector

    Ask Lasest Price
    Brand Name : HYG
    Model Number : HYG-501, SC APC Fast Connector
    MOQ : 10 pcs
    Supply Ability : 10000 Piece/Pieces per Day
    Price : $0.50 - $0.90 / Piece
    • Product Details
    • Company Profile

    factory supply high quality fiber optic sc fast connector

    factory supply sc/apc fast connector,fiber optic sc/apc fast connector,sc apc fiber optic connector with a high quality


    Specifications

    1 Precise Mechanical Dimensions
    2 Low Insertion Loss, High Return Loss
    3 Comply standard of IEC61754-4
    4 High Repeatability

    1 Introdution of Fast Connector:

    Fiber Optic Fast Connector designed for FTTX is a new generation of fiber connector used in assembly. It can provide Open flow and Pre-cast type of products, whose optical and mechanical specification meets the standard optical fiber connector.


    2 Applications for Fast Connector:

    Premise environments

    Connections at the desk for LAN environments

    Patch panels

    Direct equipment termination

    Fiber to the Subscriber (FTTx) applications

    Repair/replacement requirements

    Equipment test leads


    3 Technical Specs for Fast Connector

    ItemUnitParameters
    Insertion lossdB≤ 0.3(1310nm & 1550nm)
    Return lossdB≤ -40
    Bare fiber strengthN>5
    Clad strengthN>10
    TensionN>50
    Tensile strength (20 N)dBIL ≤ 0.2& RL ≤ 5
    Mechanical ‎durability(500times)dBIL ≤ 0.2& RL ≤ 5
    Operating Temperature°Cminus 5~70
    Storage Temperature°Cminus 40 ~ +85




    Quality factory supply high quality fiber optic sc fast connector for sale
