    100M SM SX 20KM Fiber Media Converter With SCUPC Connector

    Ask Lasest Price
    Brand Name : Haiyu Optical
    Model Number : HYG-MC-100M-SM-SX-20
    Certification : ISO9001:2008
    Supply Ability : 500 Piece/Pieces per Day
    Price : $9.00 - $278.00 / Piece
    • Product Details
    • Company Profile

    100M SM SX 20KM Fiber Media Converter With SCUPC Connector

    10/100M SM SX 20KM Fiber Optical Meida Converter Price


    Product Information:



    Band WidthRJ 45 Port:10/100MbpsOptical Port: 155Mbps
    Standard ProtocolIEEE802.3 10 Base-T standard
    IEEE802.3u 10/100Base-TX/FX standard
    IEEE 802.3X standard.
    ConnectorsUTP RJ-45SC/ST/FC Fiber connector
    Operation ModeFull /Half duplex mode
    Power SupplyExternal 5V DC 1A
    Internal AC220V/50Hz
    Power Consumption≤5W
    Environmental ParametersWork Temperature-30°C~+65°C
    Storage Temperature-40°C~85°C
    Humidity5%~90%
    TP CableCat5 UTP cable
    FiberSingle-mode: 8.3/125, 8.7/125, 9/125 or 10/125μm
    Dimensions(mm)External power supply95*70*26
    Internal power supply115x110x30

    Product ModelTransceiver TypeWave LengthDistanceOptical PowerSensibility
    HYG-S1-20SM1310nm20 km-6~-12 dbm≤-24 dBm
    HYG-S1-40SM1310nm40 km-3~-8 dbm≤-24 dBm
    HYG-S2-60SM1550nm60 km-6~-0 dbm≤-24 dBm
    HYG-S3-5MM850nm500 m-6~-12 dbm≤-24 dBm

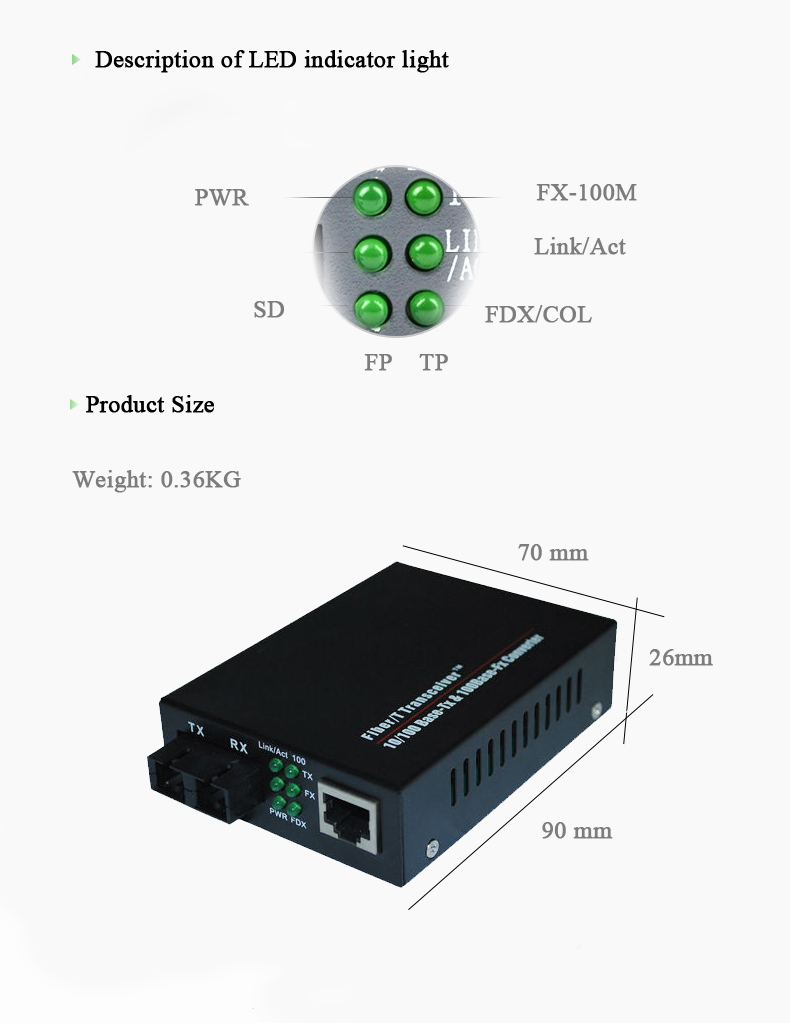

    Fiber converter pictures:


    100M SM SX 20KM Fiber Media Converter With SCUPC Connector100M SM SX 20KM Fiber Media Converter With SCUPC Connector100M SM SX 20KM Fiber Media Converter With SCUPC Connector
