    FTTH 120km Coaxial Optic Fiber Converter 850nm Wavelength

    Ask Lasest Price
    Brand Name : HYG
    Model Number : hyg-converter
    Certification : ISO9001:2008
    Supply Ability : 500 Pair/Pairs per Week
    Price : $18.00 - $38.00 / Pair
    • Product Details
    • Company Profile

    FTTH 120km Coaxial Optic Fiber Converter 850nm Wavelength

    FTTH 120km Fiber Converter fiber optic to coaxial converter

    Features:

    1, Full compatible with IEEE802.3IEEE802.3u standard

    2, Up to 100km distance on single mode optical port

    3, Up to 9278 bytes package forwarded, transmit 802.1Q VLAN TAG protocol transparently

    4, optical port supports Dual-strand, single-strand and CWDM etc.

    5, Ethernet copper port 10/100/1000Mbps speed and half/full duplex mode Auto-negotiate

    6, Ethernet copper port supports MDI/MDI-X auto sensing

    7, The number of Ethernet copper ports can extend to 4ports

    8, Backup optical ports optional, SFP device optional

    9, IEEE802.3af PoE (for PD)optical

    10, Standalones and chassis Modules optional, Chassis support cascade link up to 4 numbers for management

    Software Feature

    11, Support Console, WEB and SNMP management

    12, View & configure the working status of local chassis and remote standalone device.including connection status, speed, half/full duplex mode, port status

    13, Support rate limit with step of 8Mbps in 1000Mbps speeed,0.8Mbps in 100Mbps speed,and 0.08Mbps in 10Mbps speed.

    Product Information:

    Band WidthRJ 45 Port:10/100MbpsOptical Port: 155Mbps
    Standard ProtocolIEEE802.3 10 Base-T standard
    IEEE802.3u 10/100Base-TX/FX standard
    IEEE 802.3X standard.
    ConnectorsUTP RJ-45SC/ST/FC Fiber connector
    Operation ModeFull /Half duplex mode
    Power SupplyExternal 5V DC 1A
    Internal AC220V/50Hz
    Power Consumption≤5W
    Environmental ParametersWork Temperature-30°C~+65°C
    Storage Temperature-40°C~85°C
    Humidity5%~90%
    TP CableCat5 UTP cable
    FiberSingle-mode: 8.3/125, 8.7/125, 9/125 or 10/125μm
    Dimensions(mm)External power supply95*70*26
    Internal power supply115x110x30
    Product ModelTransceiver TypeWave LengthDistanceOptical PowerSensibility
    HYG-S1-20SM1310nm20 km-6~-12 dbm≤-24 dBm
    HYG-S1-40SM1310nm40 km-3~-8 dbm≤-24 dBm
    HYG-S2-60SM1550nm60 km-6~-0 dbm≤-24 dBm
    HYG-S3-5MM850nm500 m-6~-12 dbm≤-24 dBm

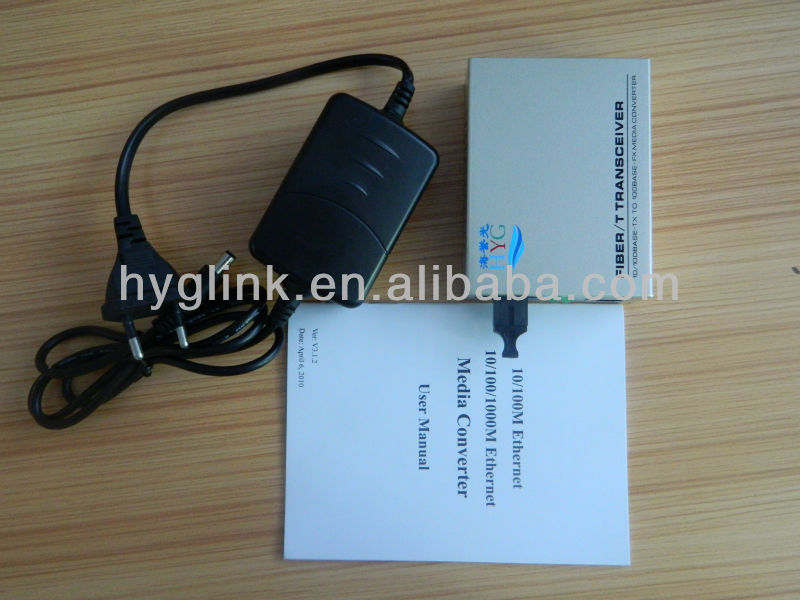

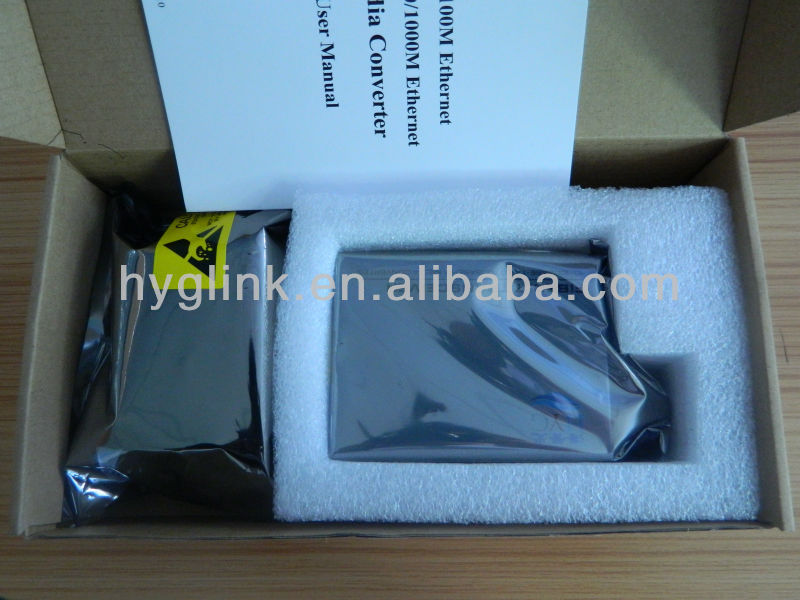

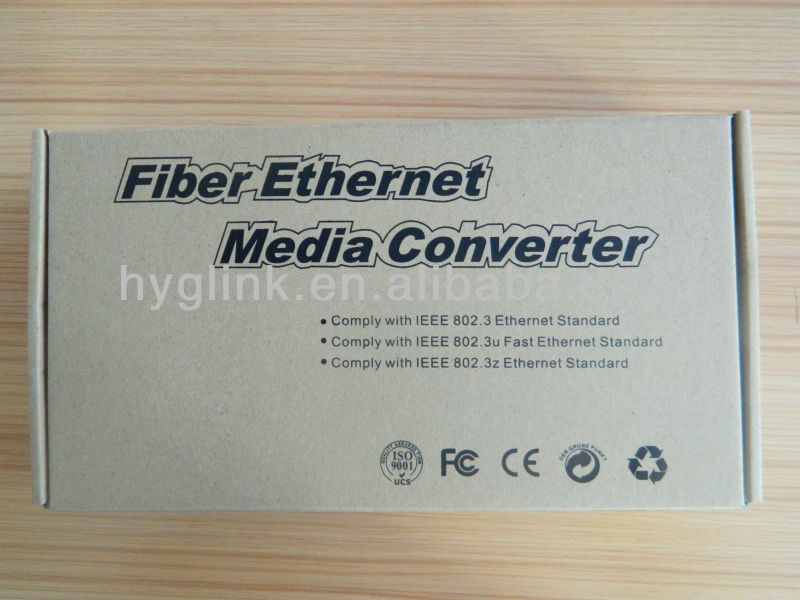

    Fiber converter pictures:

    FTTH 120km Coaxial Optic Fiber Converter 850nm WavelengthFTTH 120km Coaxial Optic Fiber Converter 850nm WavelengthFTTH 120km Coaxial Optic Fiber Converter 850nm WavelengthFTTH 120km Coaxial Optic Fiber Converter 850nm WavelengthFTTH 120km Coaxial Optic Fiber Converter 850nm Wavelength

    Applications:

    1,Optical fiber communications systems;

    2,Optical fiber access network;

    3,Optical fiber CATV.

    4,Optical fiber test equipments;

    5,Optical fiber data communications;

    6,LAN

    Factoy photos:

    FTTH 120km Coaxial Optic Fiber Converter 850nm WavelengthFTTH 120km Coaxial Optic Fiber Converter 850nm Wavelength


    Company Information

    FTTH 120km Coaxial Optic Fiber Converter 850nm WavelengthFTTH 120km Coaxial Optic Fiber Converter 850nm Wavelength

    After-Sales Service

    FTTH 120km Coaxial Optic Fiber Converter 850nm Wavelength


    OEM & ODM is accepted, any questions welcome to contact us.

    Sales Manager: Joyce Tan

    Phone: 86 13066935405

    Tel: 86 755 29467029

    Email: hyglink[a]hyglink.com

    Skype: joycetan75

    Weichat: tan_aihua
